MD30-ADJSHLF Anesthesia Cart Adjustable Shelf

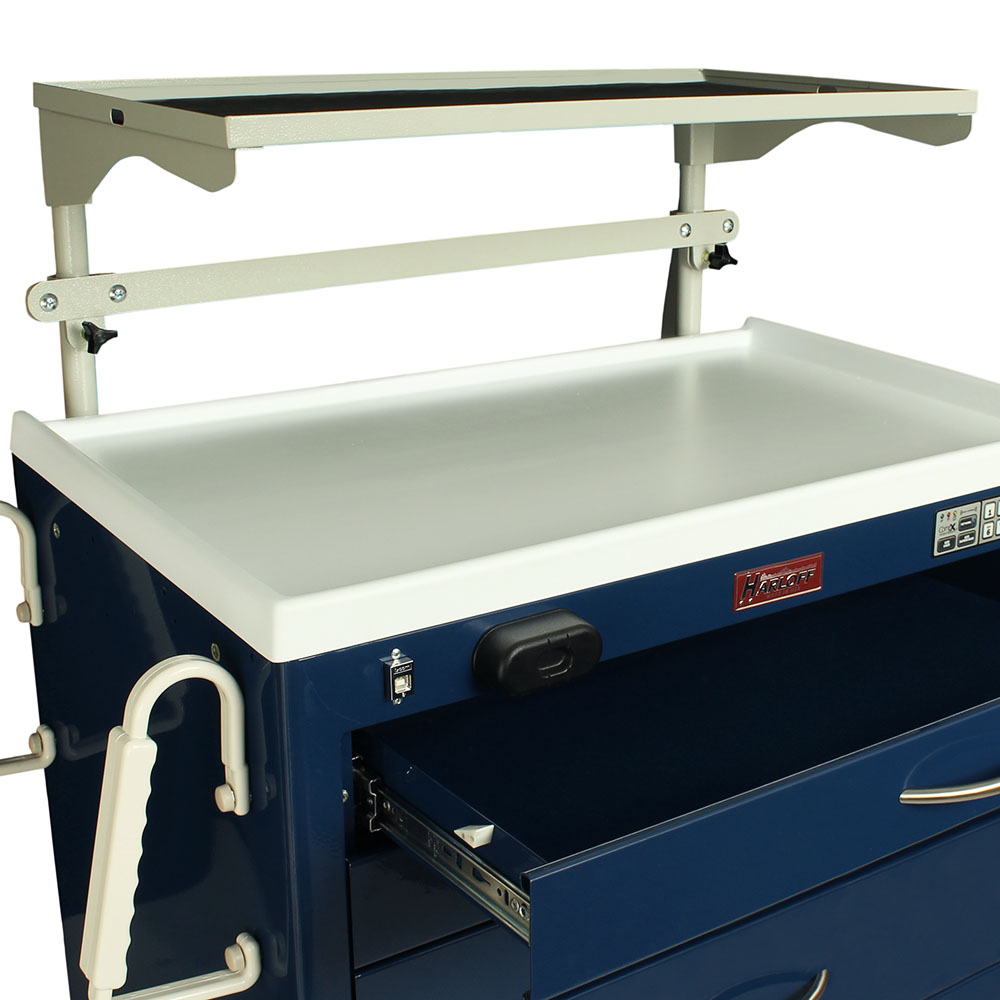

MD30-ADJSHLF Anesthesia Cart Adjustable Shelf Attached

Adjustable Overhead Shelf and Rail for M-Series or A-Series Carts, MD30-ADJSHLF

This anesthesia cart adjustable shelf provides additional cart storage and allows you to hang tilt bins, tape dispensers and other rail clip accessories at the height that you choose. More customizable than a traditional raised back rail system, this system allows you to move the position of your anesthesia cart adjustable shelf by simply loosening the knobs to slide the shelf and rail to your desired height and then tightening the knobs to secure them into the new position. This product comes in several variants: the standard MD30-ADJSHLFBAR1 variant includes one adjustable overhead shelf, one adjustable accessory hanger rail, the vertical rail supports, a rubber mat for each shelf, adjustment knobs and mounting hardware but other configurations are available as described below. This anesthesia cart adjustable shelf is made from heavy-duty steel with a heat sealed powder coat finish in the color sand.

SKU: MD30-ADJSHLF Categories: , , , , Tags: , , , , , ,

Description

This anesthesia cart adjustable shelf allows you to select the height of rail clip mounted accessories on the shelves and rails of your M-Series or A-Series cart. To adjust the height simply loosen the knobs to slide the shelf and rail to your desired height, then tighten the knobs to secure them back into position. What could be easier than that? Several shelf and rail variations are available to meet your needs. The MD30-ADJSHLF is an M-Series crossover for accessory 68034.

The MD30-ADJSHLF Adjustable Overhead Shelf must be purchased in one of several different variations, depending on your needs.
• MD30-ADJSHLF-XBAR – Configured with a single shelf and no accessory bar
• MD30-ADJSHLFBAR1 – Configured with a single shelf and one accessory bar
• MD30-ADJSHLFBAR2 – Configured with a single shelf and two accessory bars
• MD30-ADJSHLF2-XBAR – Configured with two shelves and no accessory bar
• MD30-ADJSHLF2BAR1 – Configured with two shelves and one accessory bar

You may purchase additional accessory bars using the following:
• MD30-ADJSHLFBAR – Single Accessory Bar

Specifications & Details

Features

• Designed for standard width (MDS30 and MPA30) M-Series or A-Series carts
• Each shelf and rail features knobs which allow height adjustment
• Shelves come with a black rubber mat included
• Mounting brackets feature knobs which allow height adjustment of the vertical supports
• Constructed of heat sealed powder coat steel
• Includes mounting hardware
• Standard Sand color

The MD30-ADJSHLF Adjustable Overhead Shelf must be purchased in one of several different variations, depending on your needs.
• MD30-ADJSHLF-XBAR - Configured with a single shelf and no accessory bar
• MD30-ADJSHLFBAR1 - Configured with a single shelf and one accessory bar
• MD30-ADJSHLFBAR2 - Configured with a single shelf and two accessory bars
• MD30-ADJSHLF2-XBAR - Configured with two shelves and no accessory bar
• MD30-ADJSHLF2BAR1 - Configured with two shelves and one accessory bar

Optional Accessories

You may purchase additional accessory bars using the following:
• MD30-ADJSHLFBAR - Single Accessory Bar

Assembled Dimensions

• 30.5" H x 28" W x 15.6" D (height is adjustable) (77.5 cm x 71.1 cm x 39.6 cm)
• Weighs 13.6 lbs (6.2 kg)
• Maximum shelf capacity: 30 lbs

Shipping Dimensions

• Approximate shipping weight: 18 lbs (8.2 kg)
• Approximate shipping dimensions: 28" H x 20" W x 12" D (71.1 cm x 50.8 cm x 30.5 cm)

Additional information

Weight 13.6 lbs
Dimensions 15.6 × 28 × 30.5 in
Shelf Type

MD30-ADJSHLF2-XBAR – Two shelves and no accessory bar, MD30-ADJSHLFBAR1 – Single shelf and one accessory bar, MD30-ADJSHLFBAR2 – Single shelf and two accessory bars, MD30-ADJSHLF-XBAR – Single shelf and no accessory bar, MD30-ADJSHLF2BAR1 – Two shelves and one accessory bar, MD30-ADJSHLFBAR – Single Accessory Bar ONLY
