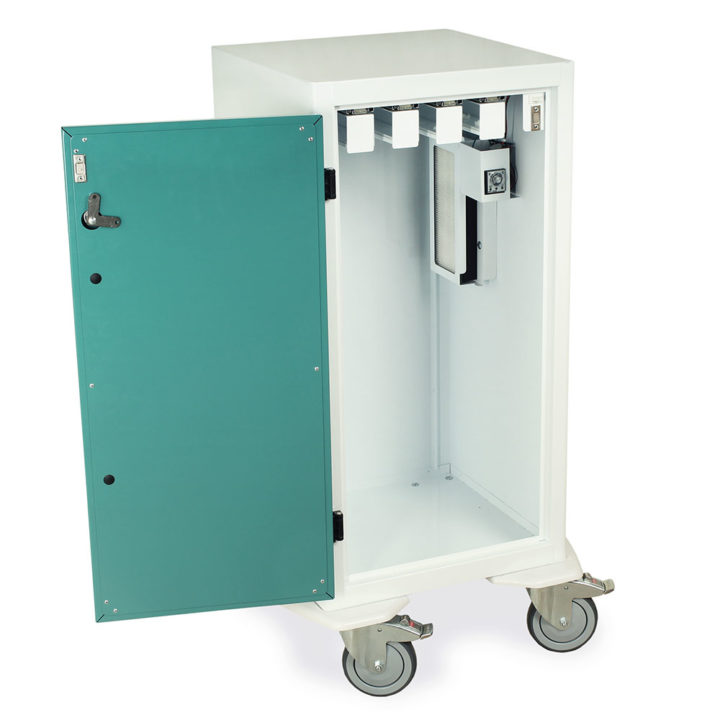

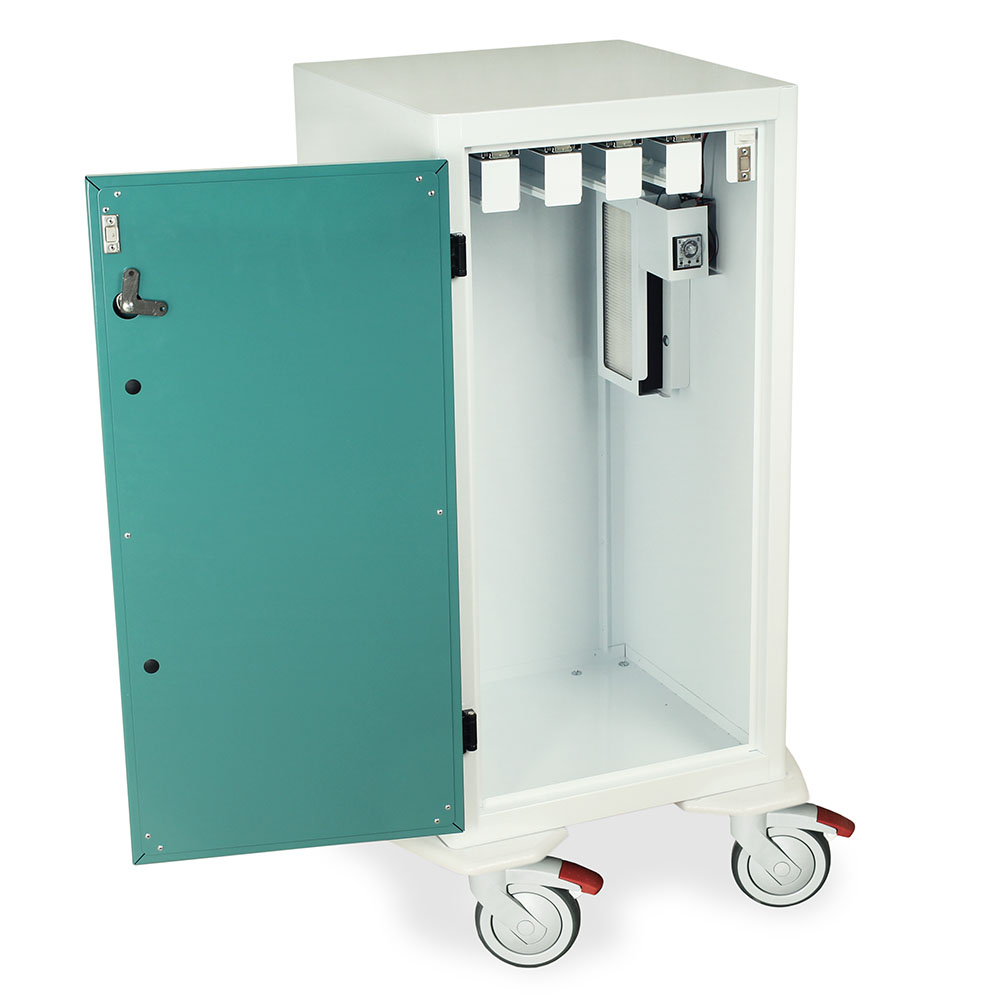

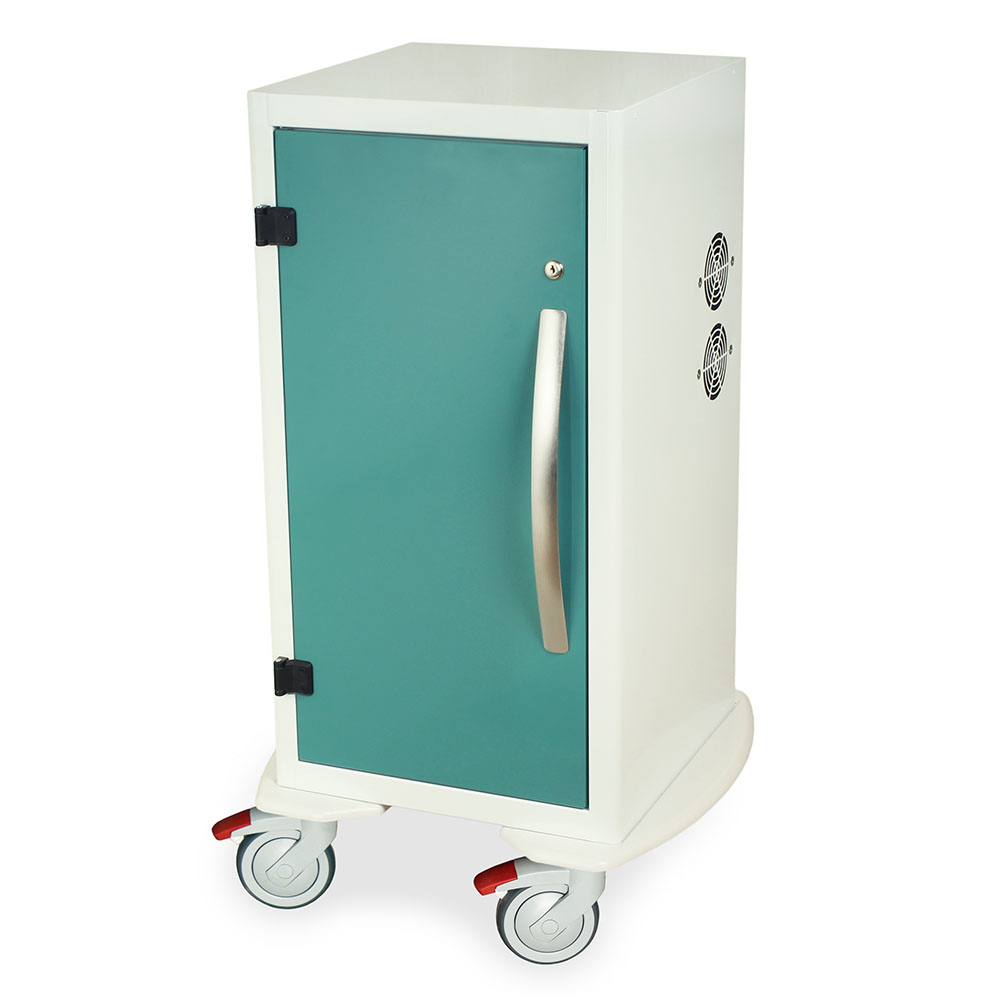

Short Savary Dilator Drying Cart with HEPA Filter, DSC24S-DP

Achieve the same drying capabilities of an endoscope drying cabinet with your Savary-Gilliard® Dilators! This new medical innovation from the design and engineering team at Harloff allows you to vertically hang up to 24 dilators for channel drying, exterior drying and storage. This HEPA filtered dilator storage cart can hold dilators up to 28″ in length, providing Positive Pressure savary dilator drying while removing 99.7% of particles, .03 Microns. The fan is adjustable from 10 to 180 minutes, and is set to activate each time the cabinet is accessed.

Download the Info Sheet

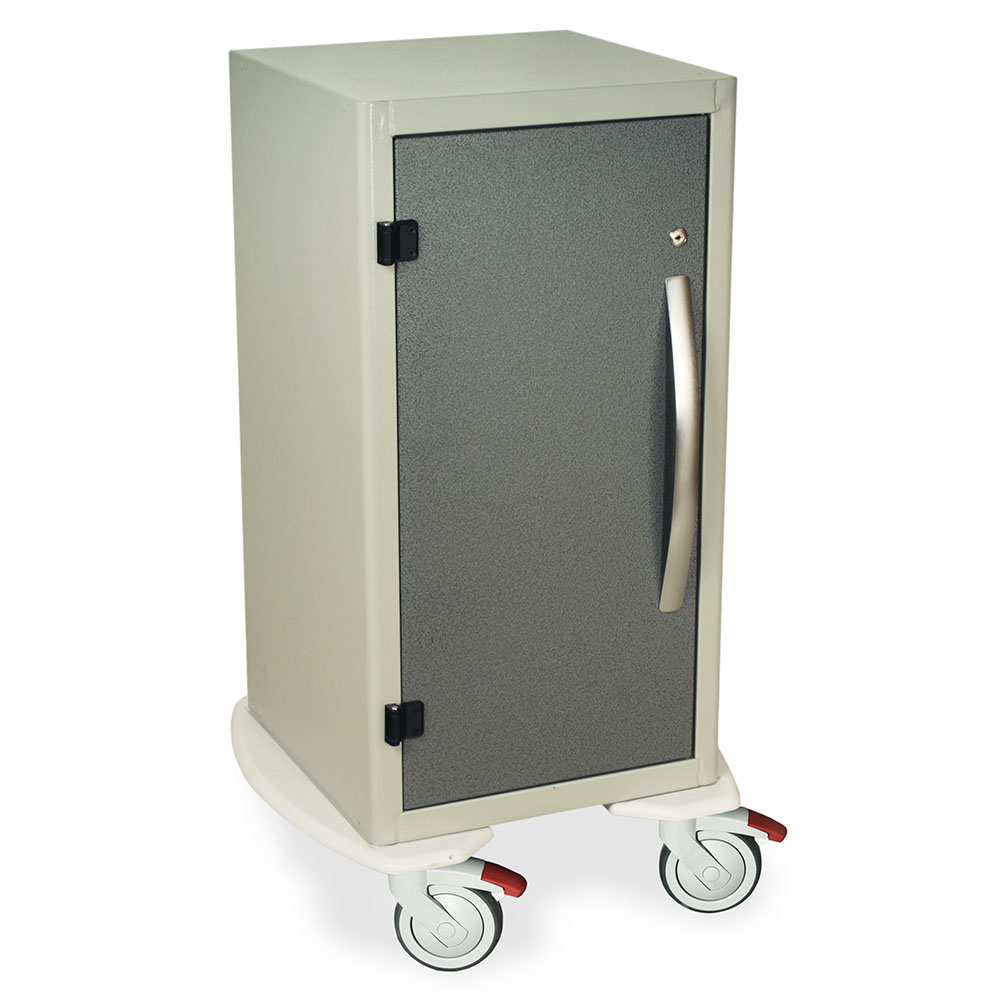

Available Colors

Painted Color Finish Options

Specifications & Details

Features

• Positive pressure fan system dries the full Savary-Gilliard® dilators and other wire guided dilators
• Fan run time (from 10 to 180 minutes) is fully adjustable and activated each time the dilator storage cart is closed
• Replaceable HEPA Filter removes 99.7% of particulates, .03 Microns

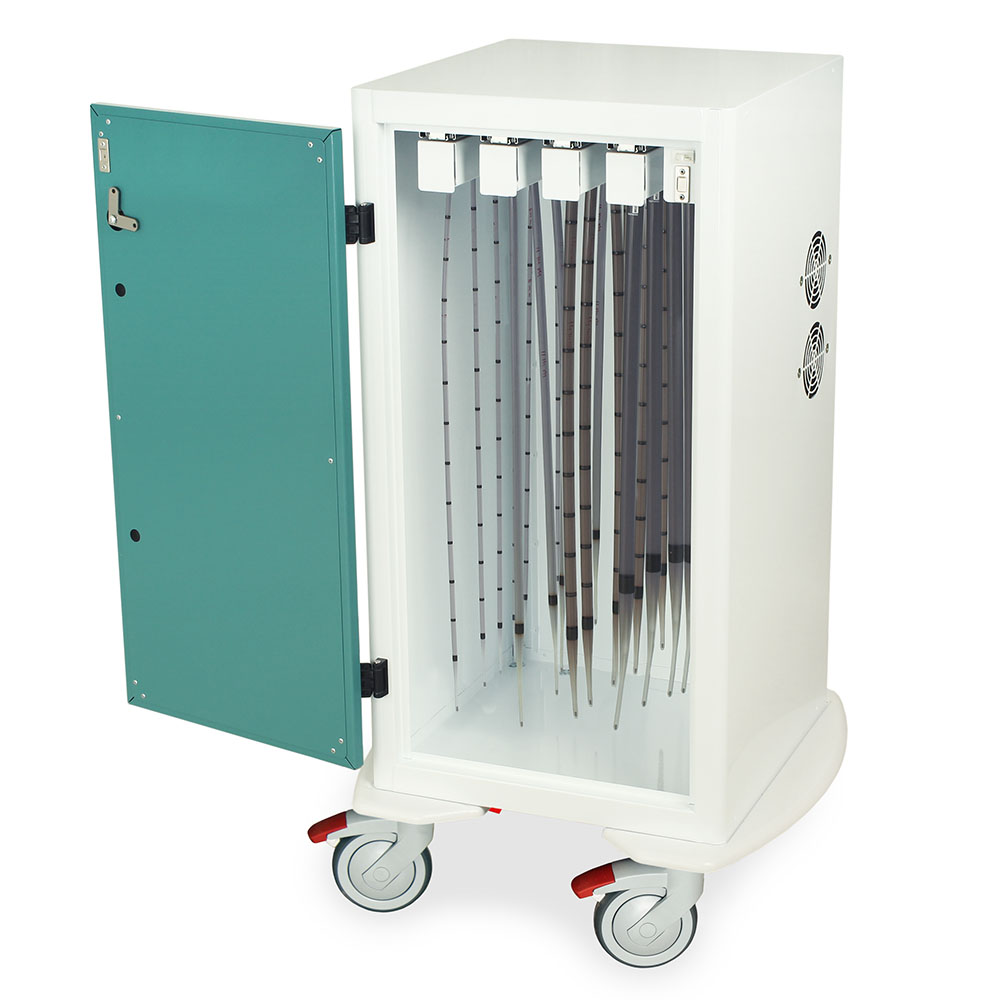

• Each dilator storage cart can hold up to 24 individual dilators, varying in size from 5mm (15 French) to 20mm (60 French) and up to 28” in length

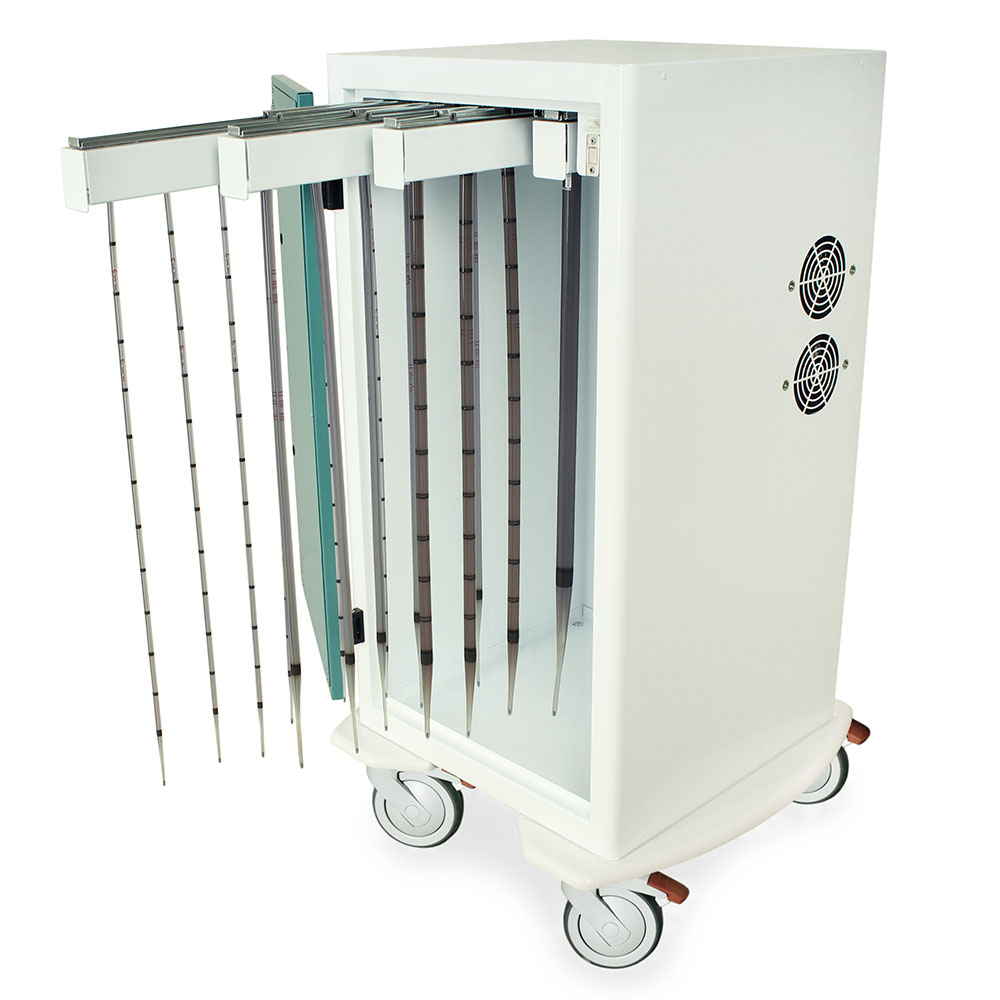

• Includes 4 Savory Pull out slides that each hold six dilators for easy access to similar sized dilators at one time
• Choice of lock options: keyless, latch lock, standard key lock or standard electronic lock
• Medical grade electrical system
• Sturdy, fully welded steel body
• Industry best 5” quiet rolling Tente® casters - 1 steering caster & 2 braking casters
• Industry only fully curved protective bumper
• Durable scratch resistant heat sealed powder coat finish
• 12-Year Manufacturer’s Warranty on shipments to US and Canada, 5-Year Manufacturer’s Warranty on all other International shipments.
• 1-Year Limited Warranty on any bought-out parts

Overall Cart Dimensions

• 40.38” H x 23.89” W x 22” D (102.6 cm H x 60.7 cm W x 55.9 cm D)
• Cart weight: 85 lbs (38.6 kg)
• Approximate shipping weight: 110 lbs (49.9 kg)
• Approximate Shipping Dims: 50” H x 29” W x 24” D (127 cm x 73.7 cm x 61 cm)

Description

Achieve the same great benefits of a full endoscope cabinet, but for your Savary-Gilliard® dilators. Provide vertical storage and Savary dilator drying capability for up to 24 dilators with easy in/out access for nurses and staff. This durable, medical-grade dilator storage cart helps drain excess fluid after dilator cleaning greatly reducing bacterial growth. Features industry best Tente® casters, your choice of four locking options and soft grip dilator holders.

Additional information

Weight 85 lbs
Dimensions 22 × 23.89 × 40.38 in
