Harloff
Innovating Storage for Care

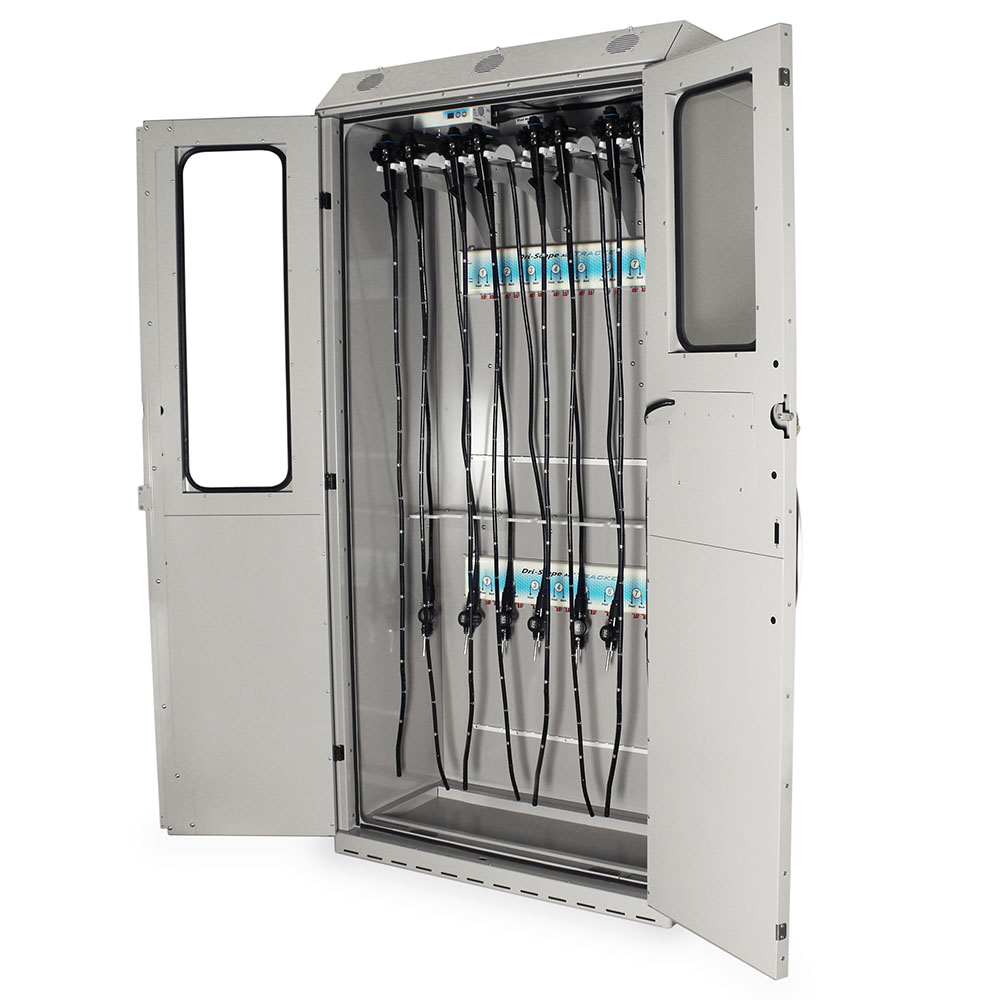

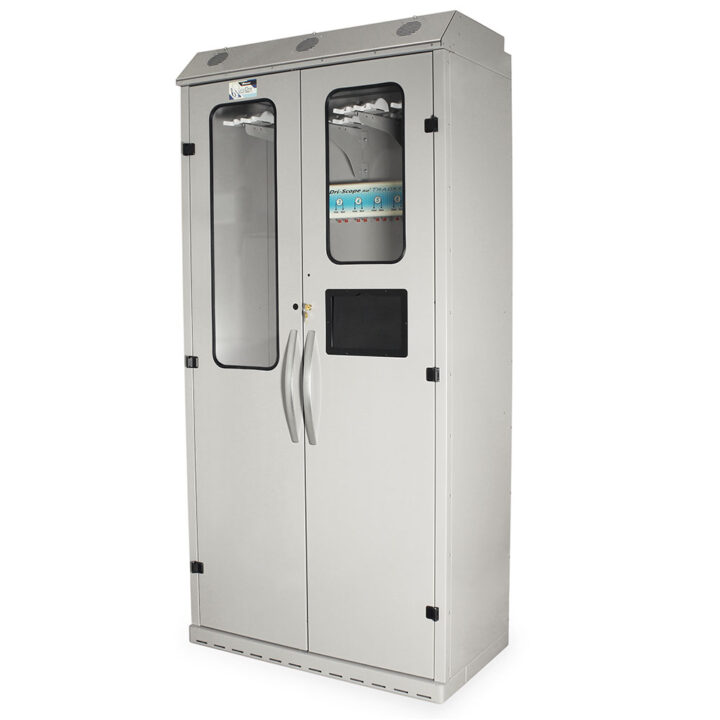

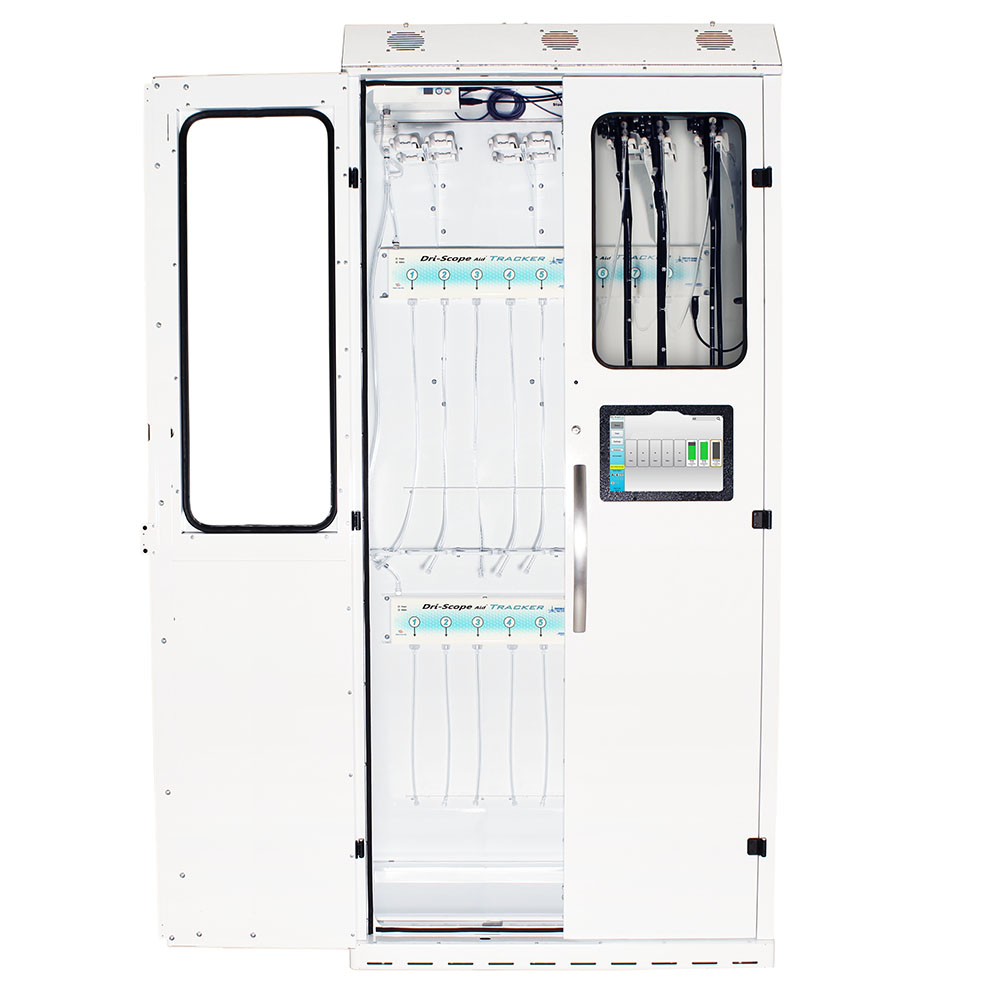

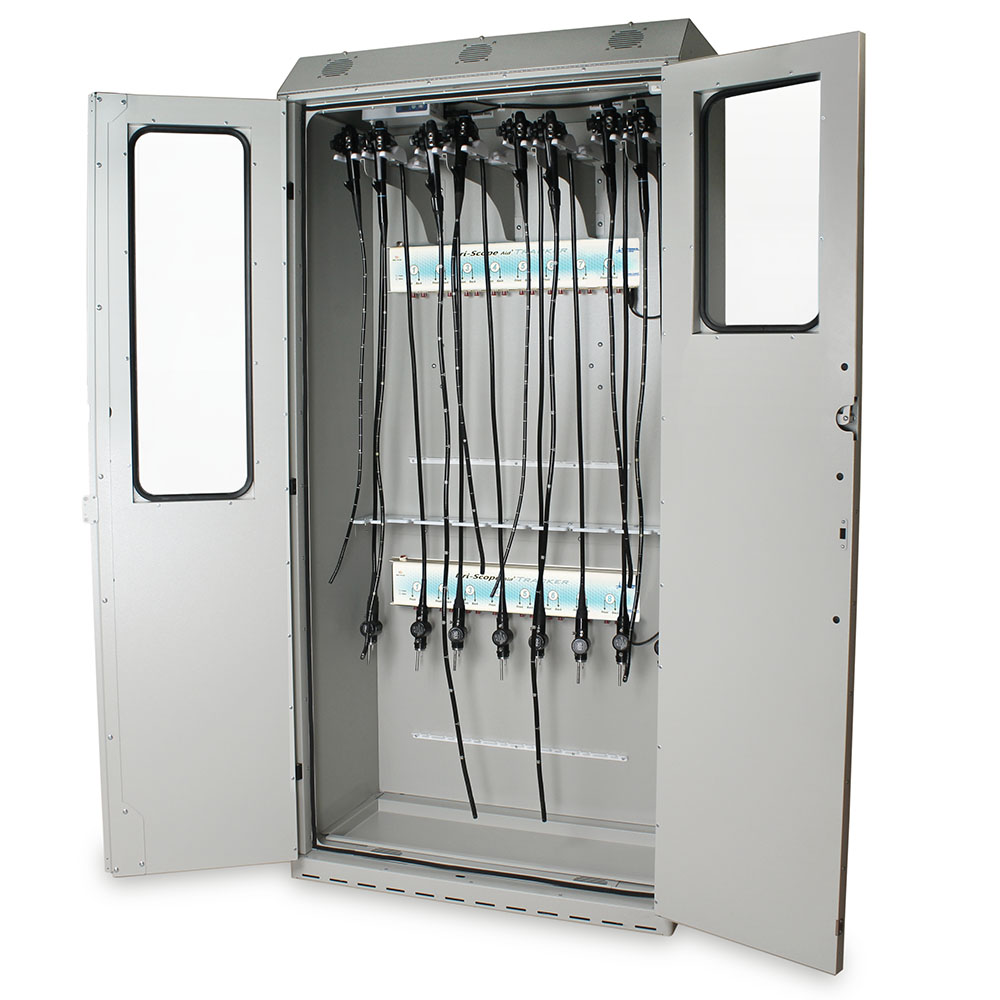

This spacious smart scope cabinet with a sixteen scope capacity uses a push/pull design creating a vortex of HEPA filtered air that flows through the cabinet ensuring maximum drying efficiency. This positive pressure system is powered by three intake fans and two exhaust fans creating a fully redundant circulation system. The addition of Dri-Scope Aid®, the industry leading internal lumen drying system, provides constant delivery of HEPA filtered air through all internal endoscope channels using simple to attach individual disposable scope connectors. The next generation “Tracker” unit is a flexible endoscope tracking system that monitors scope status, check-ins and check-outs made by your staff, scope hang times and provides customizable drying options with unique settings for each scope. Other features that make this a truly “smart” scope cabinet include an intelligent scheduler, automated reminders for filter and tubing replacement, user access restrictions by passcode and optional integrations with Bluetooth or barcode readers (sold separately). The color touchscreen is built into the smart scope cabinet body and provides scope details at a glance with downloadable export files available for endoscope management, user lists and more. This flexible endoscope tracking system helps to meet or exceed AORN, SGNA and AAMI guidelines (including ANSI/AAMI ST91:2021 updated guidelines) when included as part of your endoscope reprocessing workflow.
Ask about our upgrade to an LED internal lighting package. Click here for details.
This SureDry smart scope cabinet with a sixteen scope capacity includes the industry best positive pressure HEPA filtered drying system. Inside air is replaced inside the cabinet up to four times per minute. This flexible endoscope tracking system meets or exceeds AORN, SGNA, and AAMI guidelines.
• Industries most spacious scope cabinet allows for easy hanging and retrieval of all scope types
• Positive pressure fully redundant fan system
• Unit features three intake fans and two exhaust fans
• Fan run time is fully adjustable and activated each time cabinet is closed
• HEPA filter removes 99.7% of particulates, .03 Microns
• Holds sixteen scopes with secure adjustable mounting system
• Replaceable HEPA Filter system without removal of scopes
• Medical grade electrical system
• Tempered glass double doors
• Key lock with two keys
• Multiple locking options available including badge entry
• Easy to clean removable drip tray
• Cabinets are delivered fully assembled
• 12-Year Manufacturer’s Warranty on shipments to US and Canada, 5-Year Manufacturer’s Warranty on all other International shipments.
• 1-Year Limited Warranty on any bought-out parts
TRACKER FEATURES & BENEFITS
• Digital display maintains a list of scopes by drying status, with displays of scope processing times
• Intelligent automated scheduler continuously processes scopes as long as they remain checked into the system
• Includes default or customizable settings and drying options unique to each endoscope
• Scope tracker maintains records of scope drying events, user access, check-ins and check-outs
• Color touch screen access by authorized personnel is completed by passcode, with adjustable session timeout settings and options for passcode retrieval if forgotten
• Various adjustable timing options controlled through the color touchscreen including drying, pre-drying and venting time settings, hang time limits, endoscope removal/load delay timing, etc
• At a glance, display shows scope inventory and reprocessing status including the time until scope expiration requiring further reprocessing
• Slot display order settings displayed on the status screen per user preferences
• Configurable replacement times for tubing and pump filter, with overdue warnings/indicator lights
• Downloadable export files available for endoscope management, user lists and more
• Customizable Hang Time Monitor adjusts the number of days your scopes hang; you will be alerted when a scope is about to expire
Dri-Scope Aid® Features
• Significantly improves drying of internal channels
• HEPA filter offers a 99.97% retention rate of particles that have a size> 0.3µm
• Provides constant air delivery through all internal endoscope channels
• Short drying cycle for quick turn-around time
• Continuous venting cycle for overnight storage
• Automatic high-pressure shutoff
• Fulfills forced air recommendations
• Self-adjusting high-pressure regulation
Dri-Scope Aid® Ease of Operation
• Hands-free operation
• Visual display of purging times
• Simple to attach individual scope connectors
• Works with all major endoscope brands
• Filter replacement indicator light
• Dries 4 to 16 endoscopes
• Dri-Scope Aid®, industry leading internal lumen drying system
• Brighten your cabinet with fully dimmable overhead LED lighting which triggers on door open/close
• 93” H x 44” W x 24” D (236.2 cm x 111.8 cm x 61 cm)
• Weight: 475 lbs (216 kg)
• Approximate shipping dims: 33" H x 50" W x 96" D (83.8 cm x 127 cm x 243.8 cm)
• Approximate shipping weight: 625 lbs (284kg)
| Weight | 475 lbs |
|---|---|
| Dimensions | 24 × 44 × 93 in |
