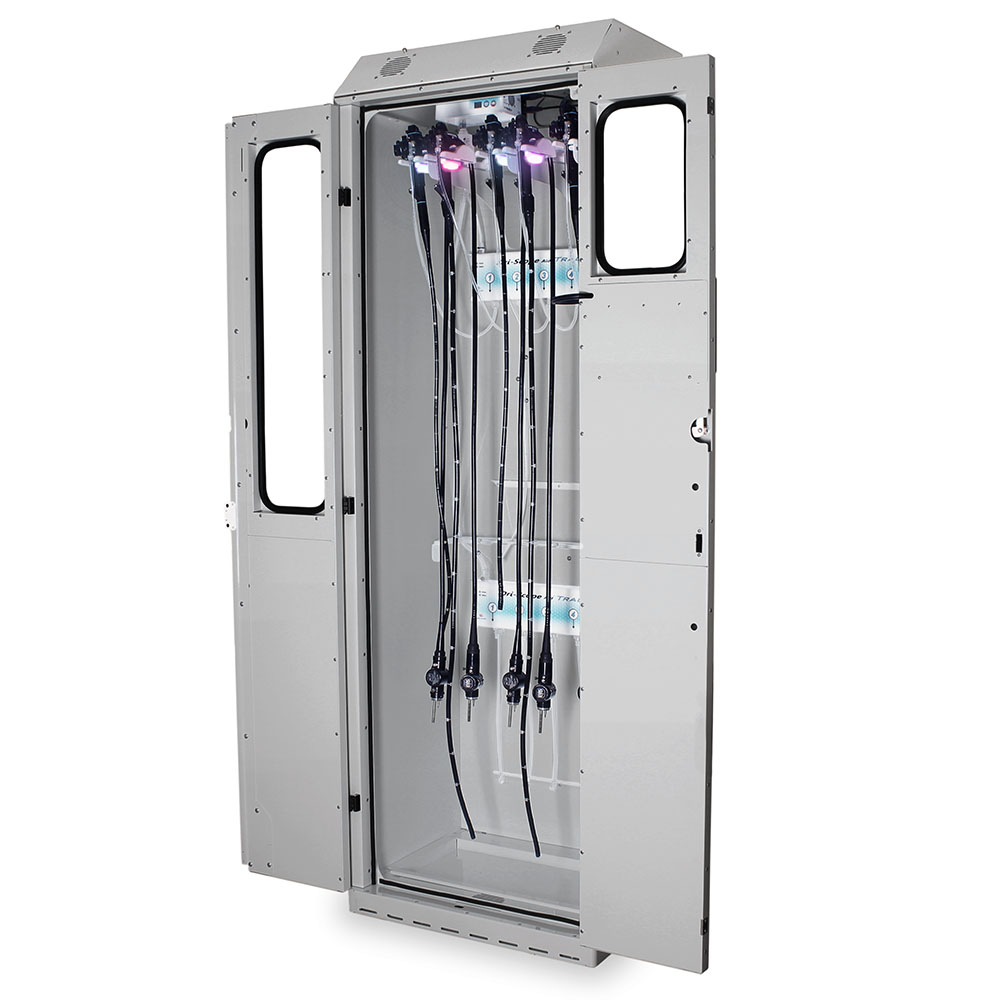

SC8030TD-T2310D+SC-10IND-30 Light Gray LED Indicator Scope Cabinets - Quarter Left Open with Scopes

SureDry Scope Cabinet, 10 Endoscope Tracking System and Dri-Scope Aid® with SC-10IND-30 Indicator LED Scope Upgrade, Key Lock, SC8030TD-T2310D+SC-10IND-30

This LED indicator scope cabinet includes both the Dri-Scope Aid® Tracker System plus the LED indicator scope upgrade system which uses colored LED lighting to improve the hanging and retrieval of endoscopes by your staff. Dri-Scope Aid® is the industry leading internal lumen drying system that dries interior endoscope channels using simple-to-attach scope connectors to provide constant flow, consistent pressure and repeatable results to scope channels. When paired with Harloff’s positive pressure, push/pull design of intake and exhaust fans with HEPA filtered cabinet airflow this system will help you to meet or exceed current AORN, SGNA and AAMI guidelines (including the ANSI/AAMI ST91:2021 updated guidelines). The Dri-Scope Aid® Tracker System digitally displays scope status, user access, check-ins/outs, displays processing times and provides customizable drying options with unique settings for each scope. The color touchscreen provides scope details at a glance with downloadable export files available for endoscope management, user lists and more. Pairing this with endoscope drying cabinet indicator lights means that every scope is color coded, with brightly lit LED indicators, whenever they are hung or retrieved or when a scope begins or ends a drying cycle. This system make scope identification easy and virtually eliminates the possibility of using an expired or incorrect scope.

Download Scope Cabinet Spec Sheet
Download LED Indicator Scope Upgrade Sales Sheet

Available Colors

Color Options

SKU: SC8030TD-T2310D+SC-10IND-30 Categories: , , , , Tags: , , , , , ,

Description

This SureDry LED indicator scope cabinet features a HEPA filtered positive pressure drying system plus Dri-Scope Aid®, the industry leading internal lumen drying system, and the LED indicator scope upgrade. This combination provides facilities with the assurance that they will be able to meet all current and future guidelines for external and internal drying of endoscopes, providing their patients the best possible assurance of infection prevention. This endoscope drying cabinet with indicator lights meets or exceeds AORN, SGNA and ANSI/AAMI ST91:2021 updated guidelines.

Specifications & Details

Features

• Positive pressure fully redundant fan system
• Unit features two intake fans and one exhaust fan
• Fan run time is fully adjustable and activated each time cabinet is closed
• HEPA filter removes 99.7% of particulates, .03 Microns
• Holds ten scopes with secure adjustable mounting system
• Replaceable HEPA Filter system without removal of scopes
• Medical grade electrical system
• Tempered glass double doors
• Key lock with two keys
• Multiple locking options available including badge entry
• Easy to clean removable drip tray
• Cabinets are delivered fully assembled
• 12-Year Manufacturer’s Warranty on shipments to US and Canada, 5-Year Manufacturer’s Warranty on all other International shipments.
• 1-Year Limited Warranty on any bought-out parts

Tracker Features and Benefits
• Digital display maintains a list of scopes by drying status, with displays of scope processing times
• Intelligent automated scheduler continuously processes scopes as long as they remain checked into the system
• Includes default or customizable settings and drying options unique to each endoscope
• Scope tracker maintains records of scope drying events, user access, check-ins and check-outs
• Color touch screen access by authorized personnel is completed by passcode, with adjustable session timeout settings and options for passcode retrieval if forgotten
• Various adjustable timing options controlled through the color touchscreen including drying, pre-drying and venting time settings, hang time limits, endoscope removal/load delay timing, etc
• At a glance, display shows scope inventory and reprocessing status including the time until scope expiration requiring further reprocessing
• Slot display order settings displayed on the status screen per user preferences
• Configurable replacement times for tubing and pump filter, with overdue warnings/indicator lights
• Downloadable export files available for endoscope management, user lists and more
• Customizable Hang Time Monitor adjusts the number of days your scopes hang; you will be alerted when a scope is about to expire

Dri-Scope Aid® Features
• Significantly improves drying of internal channels
• HEPA filter offers a 99.97% retention rate of particles that have a size> 0.3µm
• Provides constant air delivery through all internal endoscope channels
• Short drying cycle for quick turn-around time
• Continuous venting cycle for overnight storage
• Automatic high-pressure shutoff
• Fulfills forced air recommendations
• Self-adjusting high-pressure regulation

Dri-Scope Aid® Ease of Operation
• Hands-free operation
• Visual display of purging times
• Simple to attach individual scope connectors
• Works with all major endoscope brands
• Filter replacement indicator light
• Dries 1 to 10 endoscopes

Accessories Included

• Dri-Scope Aid®, industry leading internal lumen drying system
• SC-10IND-30 Indicator LED Scope Upgrade Lighting System

Optional Accessories

• Brighten your cabinet with fully dimmable overhead LED lighting which triggers on door open/close

Assembled Dimensions

• 93” H x 30” W x 24” D (236.2 cm x 76.2 cm x 61 cm)
• Weight: 293 lbs (133 kg)

Shipping Dimensions

• Shipping dims: 33" H x 50" W x 97" D (83.8 cm x 217 cm x 246.4 cm)
• Shipping Weight: 401 lbs (182 kg)

Additional information

Weight 293 lbs
Dimensions 24 × 30 × 93 in
