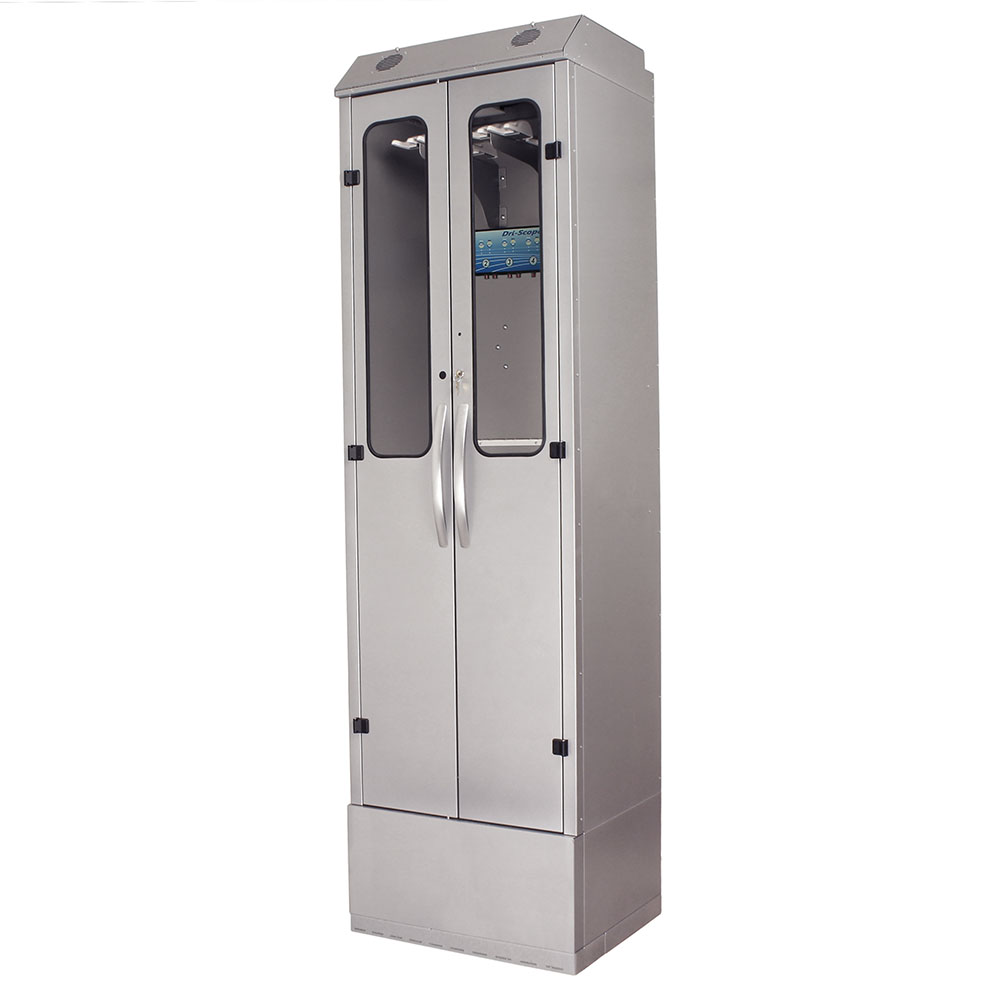

SC9430DRDP-DSS2310 Brushed Silver Enteroscope Cabinet with Channel Drying - Quarter Left Closed

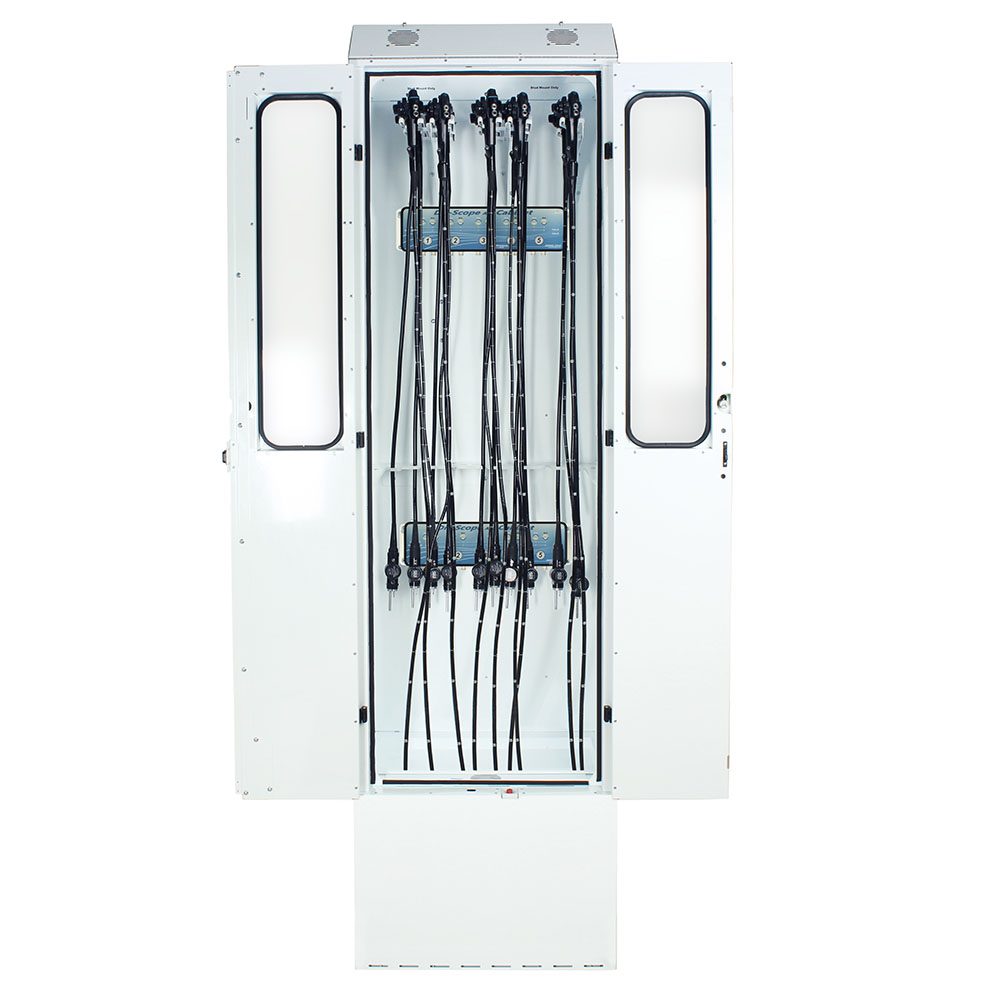

SC9430DRDP-DSS2310 White Enteroscope Cabinet with Channel Drying - Front Open Scopes

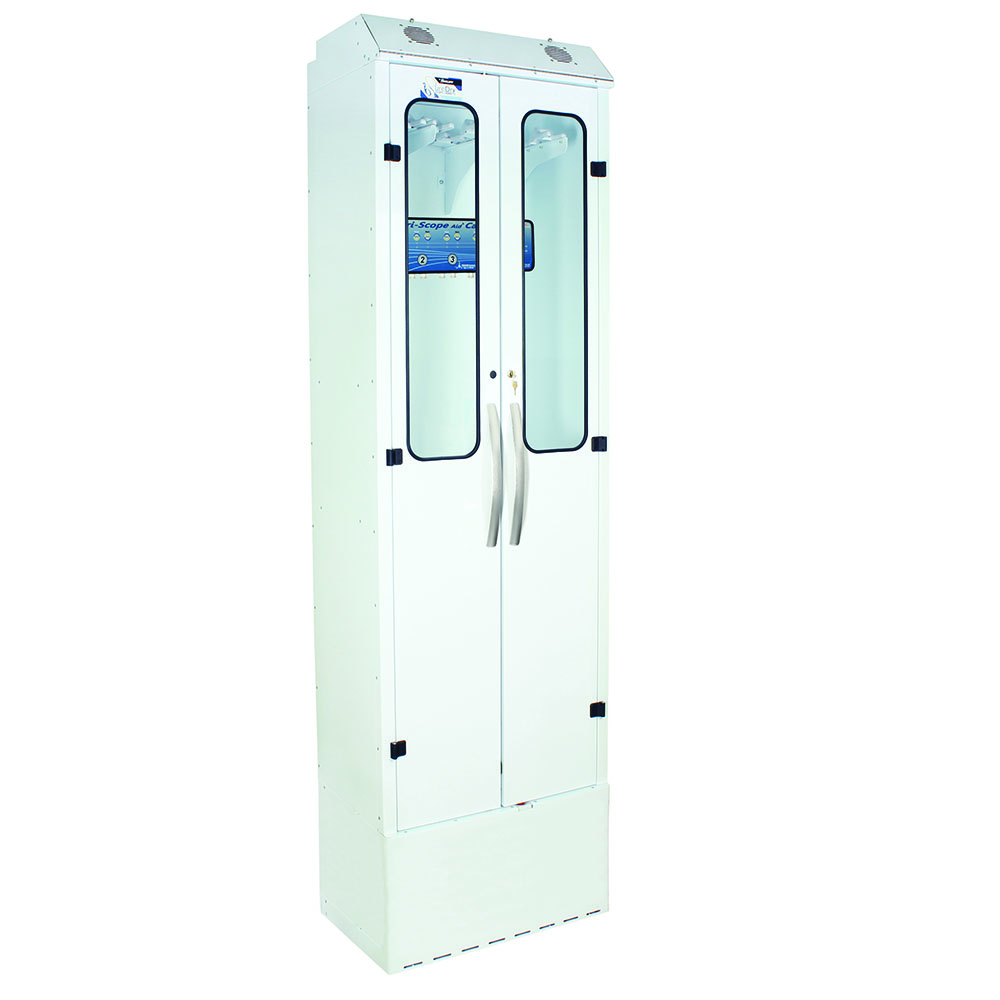

SC9430DRDP-DSS2310 White Enteroscope Cabinet with Channel Drying - Quarter Right
SC9430DRDP Brushed Silver Enteroscope Drying Cabinet - Integrated Steps

SureDry 10 Enteroscope Cabinet with Dri-Scope Aid® Channel Drying, Key Lock, SC9430DR-10-DSS2310

Meeting ANSI/AAMI ST91:2021 guidelines for scope drying can be a challenge, especially for extra long scopes like enteroscopes. This enteroscope lumen drying cabinet provides the extra height needed for hanging scopes up to 94″ in length, and combines HEPA-filtered scope drying with an integrated Dri-Scope Aid® channel drying system. This SureDry enteroscope cabinet with channel drying dries scope exteriors using a positive pressure, fully redundant fan system powered by two intake fans and one exhaust fan. The industry leading Dri-Scope Aid® system uses simple to attach individual scope connectors to provide constant air delivery through all internal endoscope channels, and it works with all major endoscope brands. Multiple locking options and color options are available with this enteroscope lumen drying cabinet, and several optional upgrades are available including dimmable LED lighting and integrated steps.

Ask about our upgrade to an LED internal light package. Click here for details.

Download Product Spec Sheet

Available Colors

Color Options

SKU: SC9430DR-DSS2310 Categories: , , , , Tags: , , , ,

Description

This SureDry enteroscope cabinet with channel drying features a HEPA filtered positive pressure drying system plus Dri-Scope Aid®, the industry leading internal lumen drying system. This combination provides facilities with the assurance that they will be able to meet all current and future guidelines for external and internal drying of enteroscopes, providing their patients the best possible assurance of infection prevention. This enteroscope lumen drying cabinet meets or exceeds AORN, SGNA and ANSI/AAMI ST91:2021 updated guidelines.

Specifications & Details

Features

• Designed for extra long scopes that won’t fit in a traditional scope cabinet
• Positive pressure fully redundant fan system
• Unit features two intake fans and one exhaust fan
• Fan run time is fully adjustable and activated each time cabinet is closed
• HEPA filter removes 99.7% of particulates, .03 Microns
• Shown with 10 scopes; other capacities available with our secure adjustable mounting system
• Replaceable HEPA Filter system without removal of scopes
• Tempered glass double doors
• Medical grade electrical system
• Multiple locking options available including badge entry
• Easy to clean removable drip tray
• Cabinets are delivered fully assembled
• Harloff has Industry Best 12 year limited manufacturers warranty for Sales to US and Canada

Features & Benefits
• Significantly improves drying of internal channels
• HEPA filter offers a 99.97% retention rate of particles that have a size> 0.3µm
• Provides constant air delivery through all internal endoscope channels
• Short drying cycle for quick turn-around time
• Continuous venting cycle for overnight storage
• Automatic high-pressure shutoff
• Fulfills forced air recommendations
• Self-adjusting high-pressure regulation

Ease of Operation
• Hands-free operation with visual display of purging times
• Simple to attach individual scope connectors
• Works with all major endoscope brands
• Disposable connectors to meet SGNA and AORN guidelines
• Dries 1 to 10 endoscopes

Optional Accessories

• Brighten your cabinet with fully dimmable overhead LED lighting which triggers on door open/close
• Integrated steps for easier access

Overall Cabinet Dimensions

• 105.5” H x 30” W x 24” D (268 cm x 76.2 cm x 61 cm)
• Weight: 308 lbs (139.8 kg)
• Shipping dims: 50" H x 110" W x 33" D (127 cm x 279.4 cm x 83.8 cm)
• Shipping Weight: 416 lbs (188.7 kg)

Additional information

Weight 308 lbs
Dimensions 24 × 30 × 105.5 in
