Harloff
Innovating Storage for Care

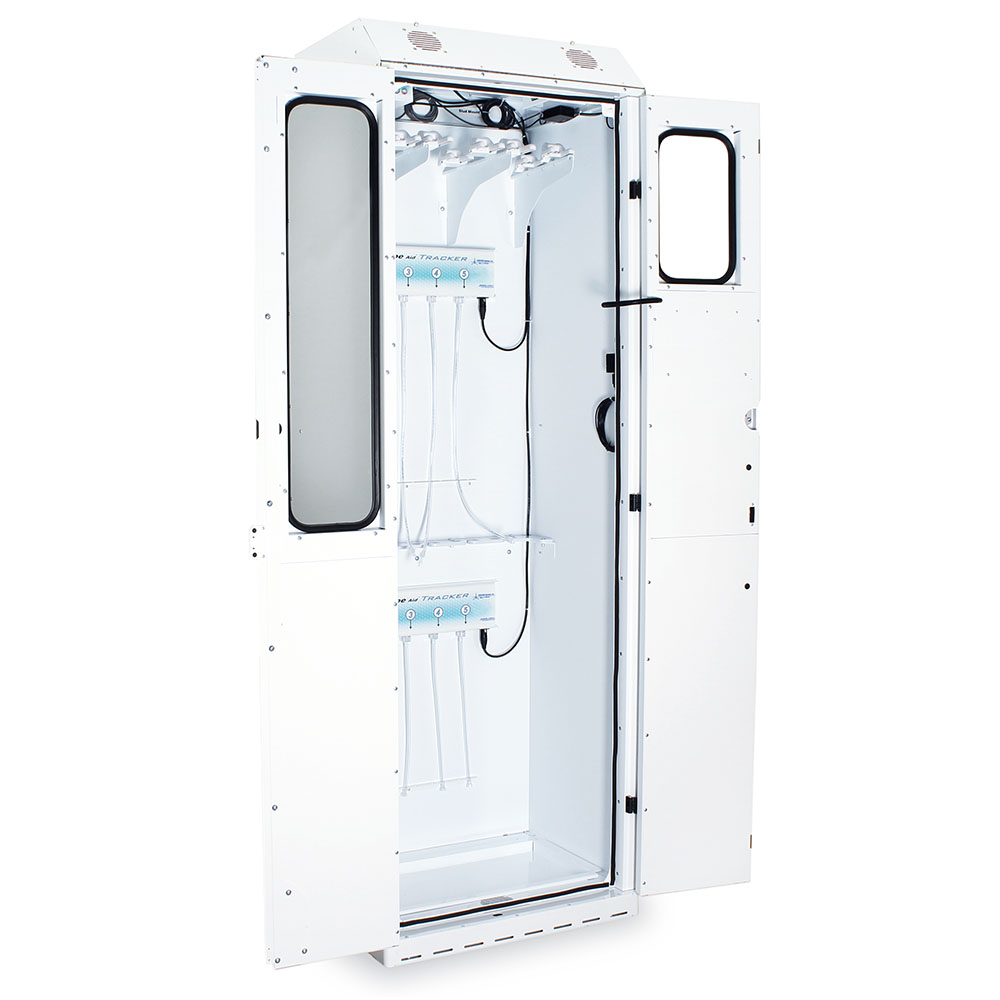

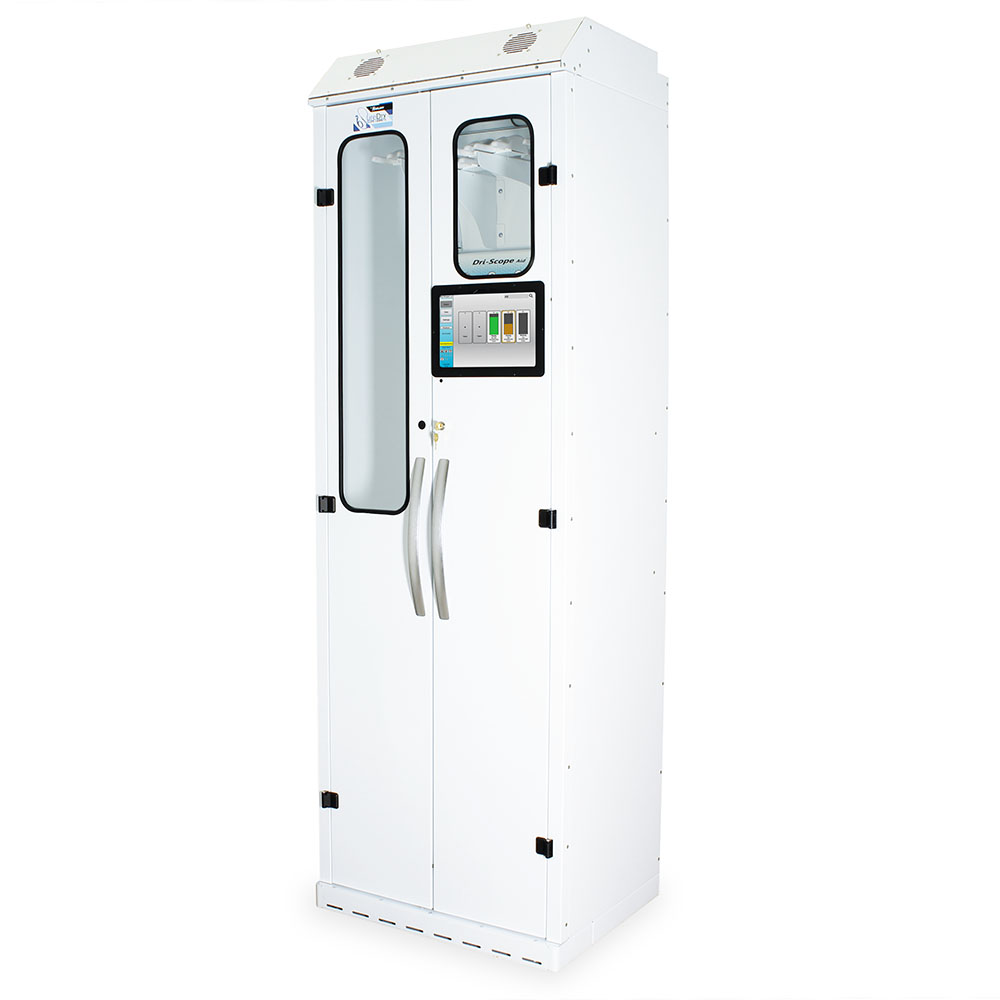

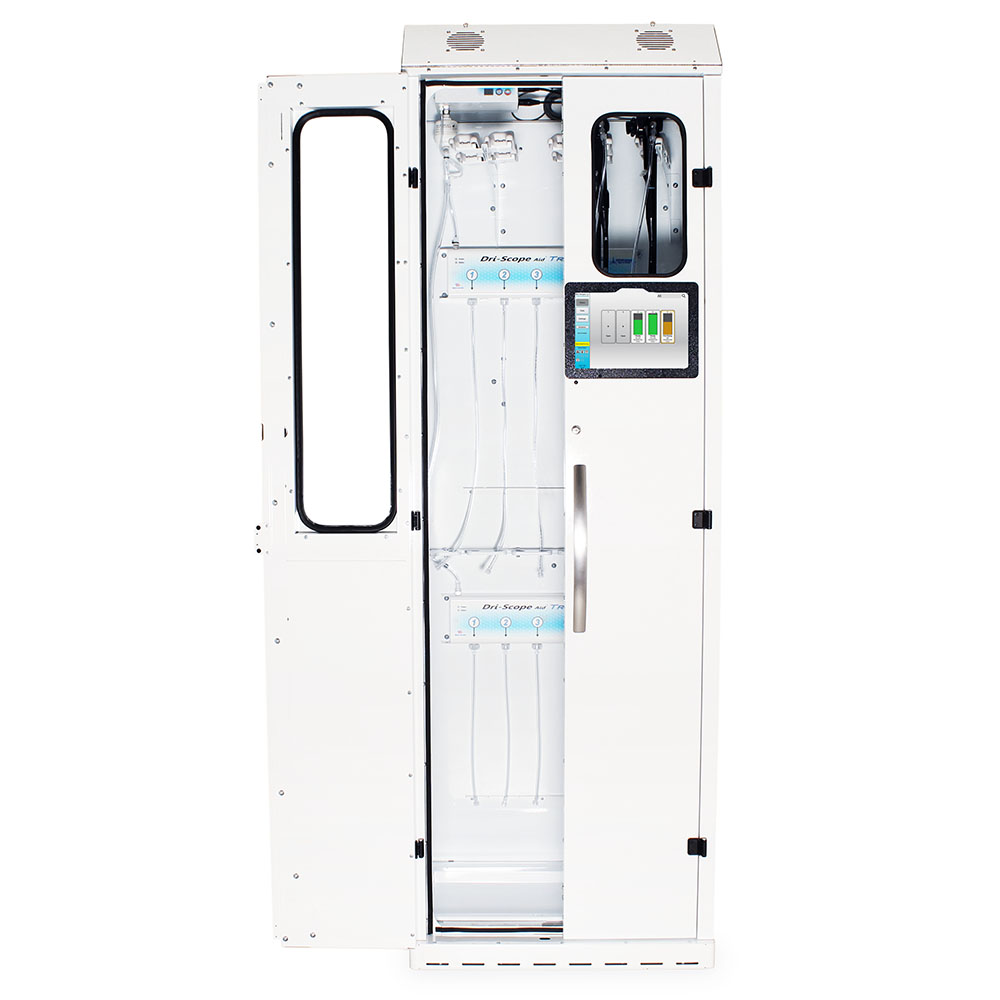

This scope drying and tracking cabinet includes the new Dri-Scope Aid® Tracker System which digitally displays scope status, user access, check-ins/outs, displays processing times and provides customizable drying options with unique settings for each scope. This scope tracking cabinet quickly dries scope exteriors with a push/pull design of intake and exhaust fans (a fully redundant circulation system) which creates a vortex of HEPA filtered air flowing through the cabinet. Interior endoscope channels are further dried with the Dri-Scope Aid® internal lumen drying system which uses simple-to-attach scope connectors to provide constant flow, consistent pressure and repeatable results to scope channels. The Dri-Scope Aid® Tracker scope cabinet tracking system includes a customizable hang time monitor with an intelligent automated scheduler that vents a cycle of air through all dry endoscopes as long as they remain checked into the system. The color touchscreen provides scope details at a glance with downloadable export files available for endoscope management, user lists and more. This complete drying system helps to meet or exceed AORN, SGNA and AAMI guidelines (including ANSI/AAMI ST91:2021 updated guidelines) when included as part of your endoscope reprocessing workflow.
Ask about our upgrade to an LED internal lighting package. Click here for details.

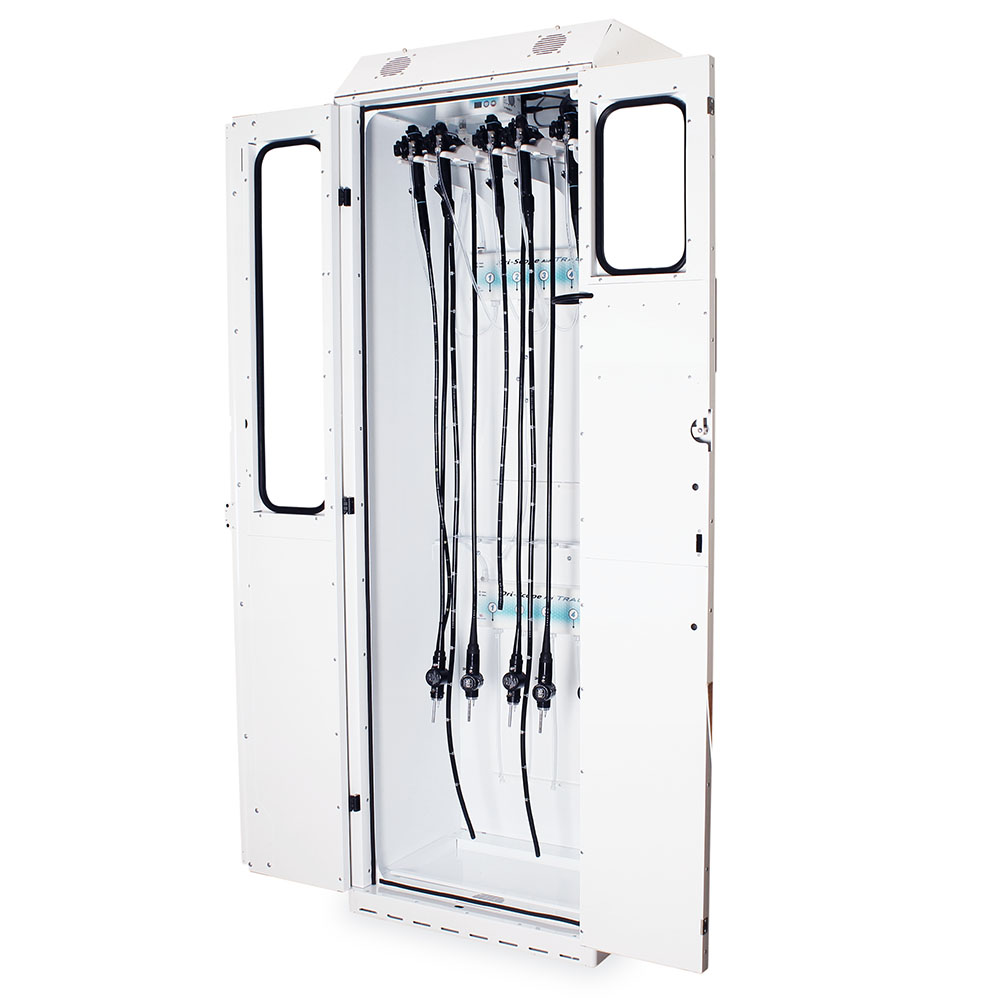

This SureDry scope drying and tracking cabinet with a ten scope capacity includes the industry best positive pressure HEPA filtered drying system. Inside air is replaced inside the cabinet up to four times per minute. This scope cabinet tracking system meets or exceeds AORN, SGNA, and AAMI guidelines.
• Positive pressure fully redundant fan system
• Unit features two intake fans and one exhaust fan
• Fan run time is fully adjustable and activated each time cabinet is closed
• HEPA filter removes 99.7% of particulates, .03 Microns
• Holds ten scopes with secure adjustable mounting system
• Replaceable HEPA Filter system without removal of scopes
• Medical grade electrical system
• Tempered glass double doors
• Key lock with two keys
• Multiple locking options available including badge entry
• Easy to clean removable drip tray
• Cabinets are delivered fully assembled
• 12-Year Manufacturer’s Warranty on shipments to US and Canada, 5-Year Manufacturer’s Warranty on all other International shipments.
• 1-Year Limited Warranty on any bought-out parts

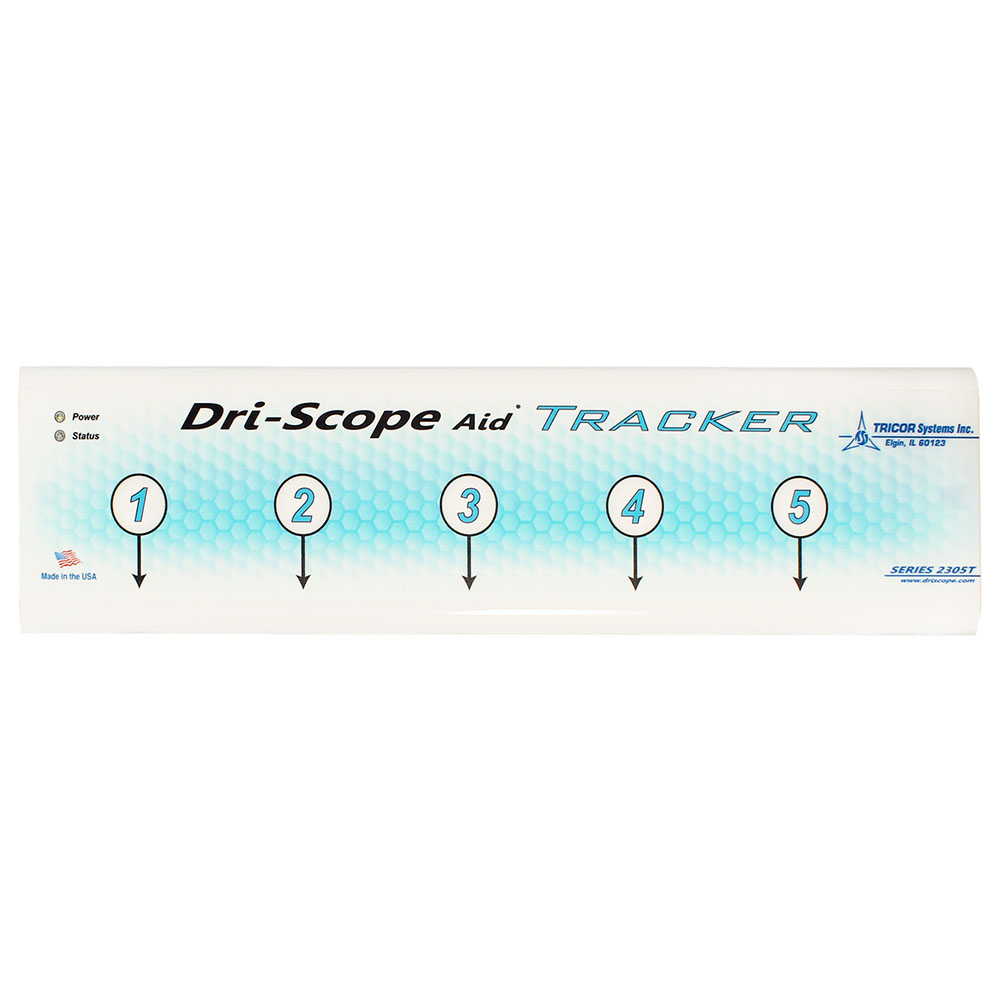

Tracker Features and Benefits
• Digital display maintains a list of scopes by drying status, with displays of scope processing times
• Intelligent automated scheduler continuously processes scopes as long as they remain checked into the system
• Includes default or customizable settings and drying options unique to each endoscope
• Scope tracker maintains records of scope drying events, user access, check-ins and check-outs
• Color touch screen access by authorized personnel is completed by passcode, with adjustable session timeout settings and options for passcode retrieval if forgotten
• Various adjustable timing options controlled through the color touchscreen including drying, pre-drying and venting time settings, hang time limits, endoscope removal/load delay timing, etc
• At a glance, display shows scope inventory and reprocessing status including the time until scope expiration requiring further reprocessing
• Slot display order settings displayed on the status screen per user preferences
• Configurable replacement times for tubing and pump filter, with overdue warnings/indicator lights
• Downloadable export files available for endoscope management, user lists and more
• Customizable Hang Time Monitor adjusts the number of days your scopes hang; you will be alerted when a scope is about to expire

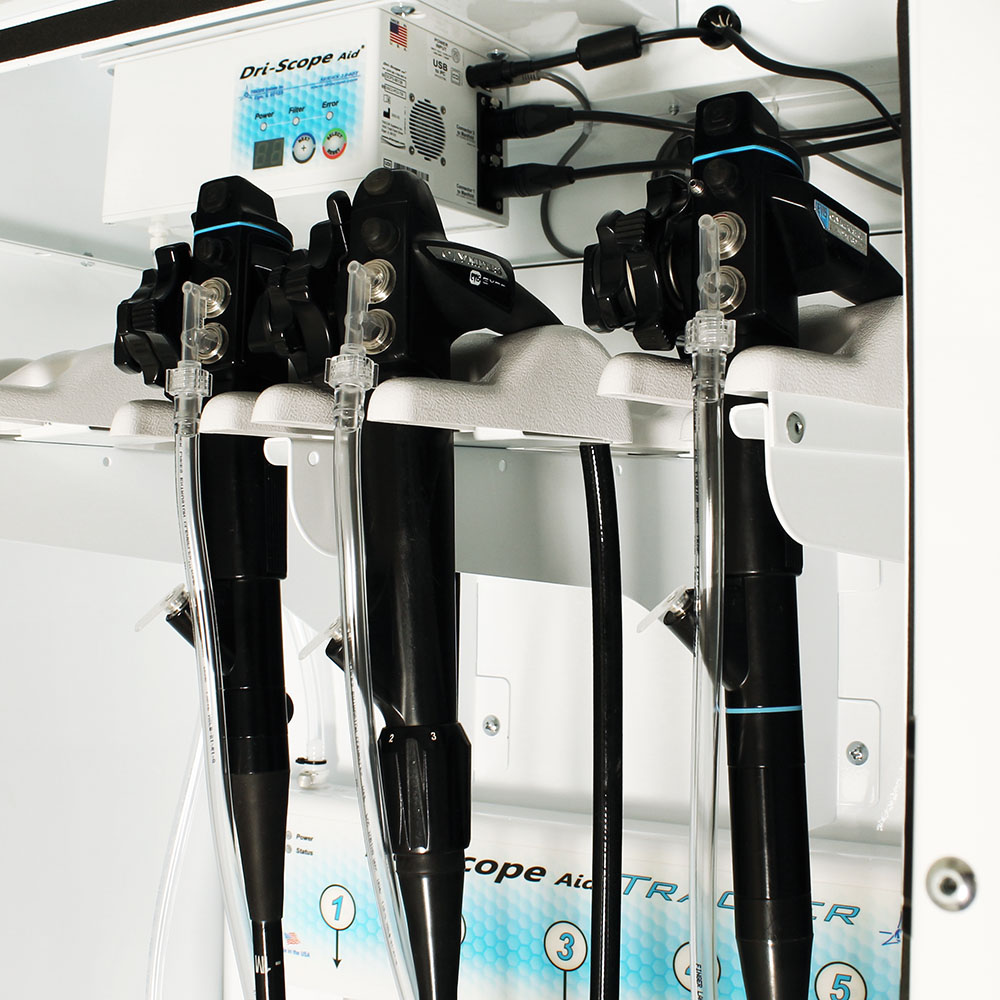

Dri-Scope Aid® Features
• Significantly improves drying of internal channels
• HEPA filter offers a 99.97% retention rate of particles that have a size> 0.3µm
• Provides constant air delivery through all internal endoscope channels
• Short drying cycle for quick turn-around time
• Continuous venting cycle for overnight storage
• Automatic high-pressure shutoff
• Fulfills forced air recommendations
• Self-adjusting high-pressure regulation
Dri-Scope Aid® Ease of Operation
• Hands-free operation
• Visual display of purging times
• Simple to attach individual scope connectors
• Works with all major endoscope brands
• Filter replacement indicator light
• Dries 1 to 10 endoscopes
• Dri-Scope Aid®, industry leading internal lumen drying system
• Brighten your cabinet with fully dimmable overhead LED lighting which triggers on door open/close
• 93” H x 30” W x 24” D (236.2 cm x 76.2 cm x 61 cm)
• Weight: 293 lbs (133 kg)
• Shipping dims: 33" H x 50" W x 97" D (83.8 cm x 217 cm x 246.4 cm)
• Shipping Weight: 401 lbs (182 kg)
| Weight | 293 lbs |
|---|---|
| Dimensions | 24 × 30 × 93 in |
