SC8044DRDP-DSS3316 Light Gray Scope Lumen Drying Cabinet - Quarter Left Open with Scopes

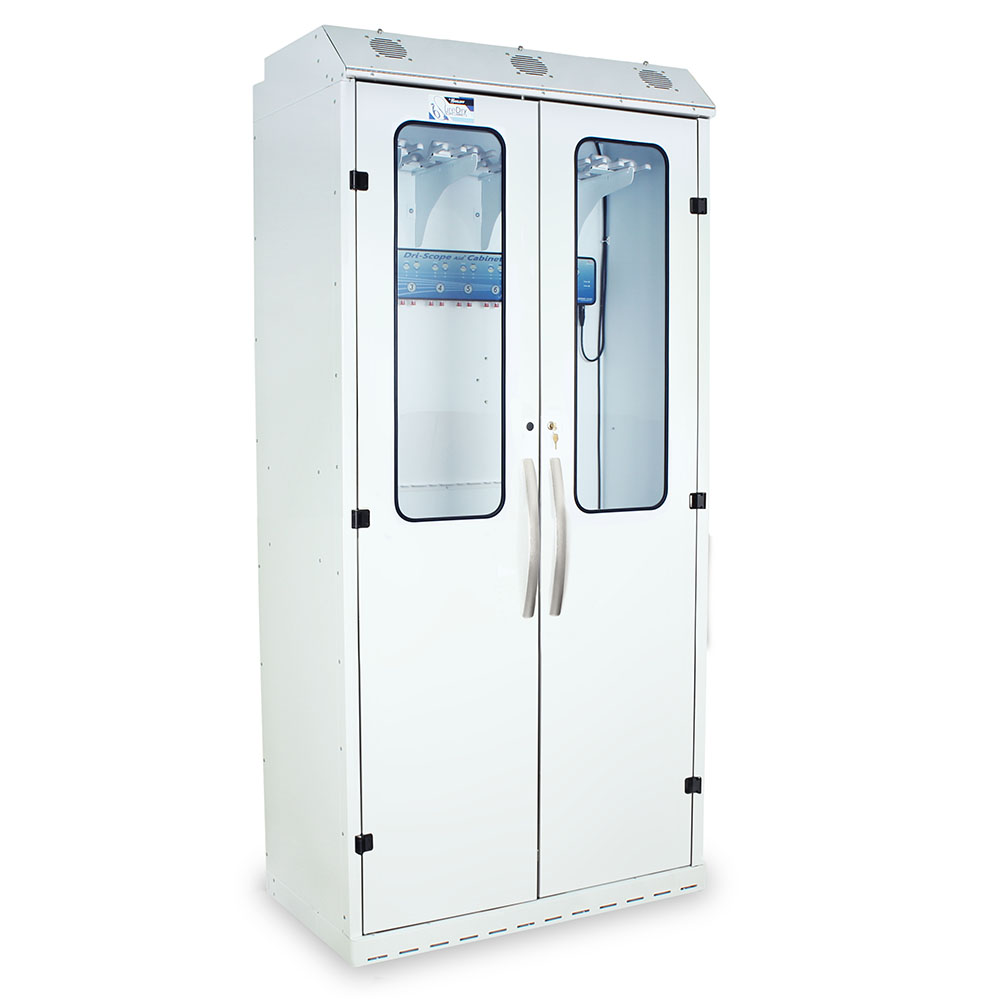

SC8044DRDP-DSS3316 Light Gray Scope Lumen Drying Cabinet - Quarter Left Closed
SC8044DRDP-DSS3316 Light Gray Scope Lumen Drying Cabinet - Quarter Right Closed

SureDry High Volume 16 Scope Cabinet with Dri-Scope Aid®, Key Lock, SC8044DRDP-DSS3316

The ultimate in endoscope drying systems is now available! This high volume scope lumen drying cabinet is the industries most spacious scope cabinet, allowing for easy hanging and retrieval of up to 16 scopes with all scope types. This heat sealed powder coat steel scope cabinet features a positive pressure fully redundant HEPA filtered fan system with three intake fans and two exhaust fans. Comes pre-installed with Dri-Scope Aid®, the industry leading internal lumen drying system, which provides constant HEPA filtered air delivery through all internal endoscope channels. Dri-Scope Aid® uses simple to attach individual disposable scope connectors that meet SGNA and AORN endoscope drying cabinet standards, and it works with all major endoscope brands. Multiple cabinet locking options are available, including badge entry, or you may brighten your cabinet for easier scope inspection with fully dimmable optional overhead LED lighting. With an increased cabinet depth and width, a 12 year manufacturers warranty, and Made in the USA manufacturing expertise this scope lumen drying cabinet is the perfect solution for your high traffic, high volume endoscopy area.

Ask about our upgrade to an LED internal light package. Click here for details.

Download Product Spec Sheet

Available Colors

Color Options

SKU: SC8044DRDP-DSS3316 Categories: , , , , Tags: , , , , ,

Description

This SureDry High Volume Scope Drying Cabinet features an external HEPA filtered positive pressure drying system that is unique among endoscope drying cabinet suppliers. The addition of Dri-Scope Aid® upgrades this to a full scope lumen drying cabinet, providing facilities with the assurance that they will be able to meet all current and future endoscope drying cabinet standards for external and internal drying of endoscopes and providing their patients the best possible assurance of infection prevention. This Dri-Scope Aid® Scope Lumen Drying Cabinet supplies HEPA-filtered air to all internal channels to aid in drying endoscopes with an automated drying cycle for improved turn-around time, and a continuous venting cycle for overnight storage. The Dri-Scope Aid® system combined with the Harloff SureDry High Volume Scope Drying Cabinet is a complete drying system for your facility.

Specifications & Details

Features

• Industries most spacious scope cabinet allows for easy hanging and retrieval of all scope types
• Positive pressure fully redundant fan system
• Industries only unit with 3 intake and 2 exhaust fans
• Fan run time is fully adjustable and activated each time cabinet is closed
• HEPA filter removes 99.7% of particulates, .03 Microns
• Holds 16 scopes with our secure adjustable mounting system
• Replaceable HEPA Filter system without removal of scopes
• Medical grade electrical system
• Tempered glass double doors
• Key lock with two keys
• Multiple locking options available including badge entry
• Easy to clean removable drip tray
• Cabinets are delivered fully assembled
• 12-Year Manufacturer’s Warranty, 1-Year Limited Warranty on any bought-out parts

Dri-Scope Aid® Features
• Significantly improves drying of internal channels
• HEPA filter offers a 99.97% retention rate of particles that have a size> 0.3µm
• Provides constant air delivery through all internal endoscope channels
• Short drying cycle for quick turn-around time
• Continuous venting cycle for overnight storage
• Automatic high-pressure shutoff
• Fulfills forced air recommendations
• Self-adjusting high-pressure regulation

Dri-Scope Aid® Ease of Operation
• Hands-free operation
• Visual display of purging times
• Simple to attach individual scope connectors
• Works with all major endoscope brands
• Filter replacement indicator light
• Dries 1 to 16 endoscopes

Accessories Included

• Dri-Scope Aid®, industry leading internal lumen drying system

Optional Accessories

• Brighten your cabinet with fully dimmable overhead LED lighting which triggers on door open/close

Overall Cart Dimensions

• 93” H x 44” W x 24” D (236.2 cm x 111.8 cm x 61 cm)
• Weight: 475 lbs (216 kg)
• Approximate shipping dims: 33" H x 50" W x 96" D (83.8 cm x 127 cm x 243.8 cm)
• Approximate shipping weight: 625 lbs (284kg)

Additional information

Weight 334 lbs
Dimensions 24 × 44 × 93 in
