SureDry Scope Cabinets

Harloff scope drying cabinets provide positive pressure, HEPA-filtered air to ensure speedy external scope drying. When paired with Dri-Scope Aid® our systems provide internal channel drying and next-gen “smart” scope management with the Tracker system. All SureDry cabinets help you to meet or exceed AORN, SGNA and ANSI/AAMI ST91:2021 updated guidelines related to preventing biofilm growth in flexible endoscopes.

Not sure where to begin? Click here to view our Scope Cabinet Buying Guide & Product Comparison.

Shop by Scope Cabinet Type

SureDry with
Dri-Scope Aid® Tracker System

This next generation Dri-Scope Aid® Tracker System has an integrated color touchscreen to display scope status, user access, check-ins/outs, displays processing times and provides drying setting options customized uniquely to each scope.

SureDry Scope Cabinets with
Dri-Scope Aid®

Dri-Scope Aid® is the industry leading internal lumen drying system. For external and internal drying of endoscopes, the combination of channel drying with SureDry positive pressure provides the best infection prevention.

Standard SureDry Scope Drying Cabinets

The SureDry Scope Cabinet includes the industry best Positive Pressure HEPA Filtered Drying system. Inside air is replaced inside the cabinet up to four times per minute. Meets or exceeds AORN, SGNA and AAMI guidelines.

Shop by Scope Cabinet Width

24″ Width

30″ Width

SC8030DRDP-TEE Beige TEE Probe Storage Cabinet - Quarter Left Closed with Scopes

36″ Width

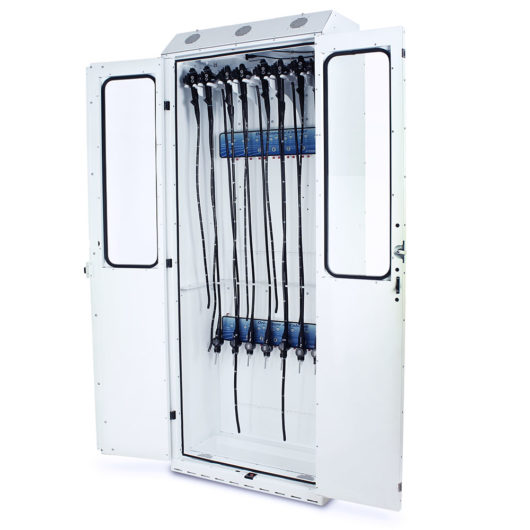

SC8036DREDP-DSS3316 Endoscopy Scope Drying Cabinet with Dri-Scope Aid - White Quarter Right Open with Scopes

44″ Width

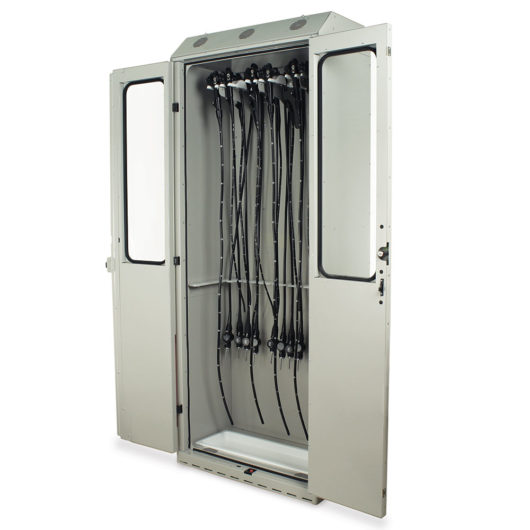

SC8044DRDP-DSS3316 Light Gray Scope Lumen Drying Cabinet - Quarter Left Closed

60″ Width

SC8060DRDP-2DSS2310 Navy Large Size Scope Drying Cabinet - Quarter Left Closed

Endoscope Drying & Storage Compliance Checklist

Use this checklist to evaluate whether an endoscope drying cabinet meets key requirements from ANSI/AAMI ST91:2021 and other leading clinical guidelines.

Compliance
Requirement		 Guideline Reference Evaluation Questions Standard
Met?
Scope Stored Vertically ST91 11.2.1 “stored vertically, the insertion tube should be as straight as possible, with the distal tip hanging freely.” ST91 11.2.1 “When flexible and semi-rigid endoscopes are hung in the vertical position, coiling or kinking is prevented.”
  • Are scopes stored vertically to promote proper drying?
  • Are insertion tubes kept as straight as possible?
 ✔ Yes
Hanging Freely
Without Coiling		 ST91 11.2.2 “should be stored in a cabinet that is of sufficient height, width, and depth to allow flexible endoscopes to hang vertically without coiling and without any components touching the bottom of the cabinet.”
  • Do scopes hang freely without touching other scopes
    or the cabinet bottom, preventing contamination?
  • Is cabinet size sufficient to prevent coiling or contact?
 ✔ Yes
Channel Drying +
Forced Air		 ST91 8.2.5.1 “Flexible endoscopes with channels should be dried for a minimum of 10-minutes with pressure-regulated forced instrument air or a minimum of HEPA-filtered air.” ST91 8.2.5.2 Use pressure-regulated instrument air or HEPA-filtered air to dry the channels in accordance with the manufacturer’s written IFU.
  • Are automated drying cycles (minimum 10 minutes)
    in accordance with IFUs?
  • Is airflow pressure-regulated to prevent scope damage?
 ✔ Yes
(with Dri-Scope Aid®)
HEPA-Filtered
Positive Pressure		 ST91 11.2.2.2 Cabinets that enable circulation of HEPA-filtered or instrument air through the cabinet at… positive pressure.
  • Does the cabinet maintain positive pressure?
  • Is HEPA-filtered air (99.97% at 0.3 microns) used?
 ✔ Yes
Active Airflow ST91 11.2.1 Endoscopes should be stored suspended vertically or horizontally in a cabinet designed for storage in a way to allow circulation of air in accordance with the endoscope manufacturer’s written IFU (e.g., pressure of air flow through channels, diameter of endoscope coil).
  • Is there continuous airflow throughout the cabinet
    during drying cycles?
  • Does it meet drying vs. storage cabinet requirements?
 ✔ Yes
Easy Scope
Identification		 ST91 11.2.3 “Protocols should be developed to help ensure that users can readily identify an endoscope that has been processed and is ready for patient use.”
  • Can staff easily identify scopes ready for use?
  • Are visual indicators or tracking systems used?
 ✔ Yes
(with the
Dri-Scope Aid®
Tracker system)
Single-Use Connectors Best Practice
  • Are disposable connectors used to prevent contamination?
  • Do they simplify setup and reduce handling errors?
 ✔ Yes
(with Dri-Scope Aid®)
Clinical Documentation ASGE 2016 Guideline “Drying the interior of an endoscope should use a sufficiently prolonged flow of medical air through all accessible channels, ideally simultaneously and for at least 10 minutes, for greatest efficiency.”
Per the study, “Multisociety guideline on reprocessing flexible GI endoscopes: 2016 update.”
  • Does the system record drying time, airflow parameters,
    and cycle completion for compliance documentation?
  • Can data be exported for audits or compliance tracking?
 ✔ Yes
(with the
Dri-Scope Aid®
Tracker system)
Internal Lumen Drying ST91 8.2.3.2 n) Endoscopes that have completed an HLD cycle in an AER should undergo additional drying internally with instrument air to remove moisture, dried externally (see 8.2.5), and then stored in accordance with Section 11 to avoid contamination.
  • Are internal channels actively dried post-HLD?
  • Are direct air connections provided for lumens?
 ✔ Yes
(with Dri-Scope Aid®)
Pressure Monitoring ST91 8.2.5.2 Use pressure-regulated instrument air or HEPA-filtered air to dry the channels in accordance with the manufacturer’s written IFU.
  • Is constant flow rate through channels monitored ?
  • Is there a visual or digital display?
 ✔ Yes
(with Dri-Scope Aid®)
Tracking & Audit Trail ST91 11.2.4.1 The accepted maximum safe storage time (previously referred to as “hang time” or shelf life) for processed endoscopes before they can no longer be considered safe for patient use is not well defined. There are a limited number of studies addressing this issue. The available data suggest that the risk of contamination is reduced when storage is performed according to the endoscope and storage cabinet manufacturers’ written IFU.
  • Is scope storage time (“hang time”) tracked?
  • Are alerts provided when reprocessing is needed?
 ✔ Yes
(with the
Dri-Scope Aid®
Tracker system)
Cabinet Material
& Cleanability		 Best Practice
  • Are materials non-porous and medical-grade?
  • Are surfaces easy to clean and disinfect?
 ✔ Yes
Multi-Guideline
Compliance		 AORN, SGNA and ANSI/AAMI ST91:2021 guidelines
  • Does the cabinet align with major industry standards?
  • Is documentation available upon request?
 ✔ Yes

Harloff combined SureDry positive pressure drying technology with the next generation Dri-Scope Aid® Tracker System, creating our first “smart” scope cabinet. The integrated color touchscreen digitally displays scope status, user access, check-ins/outs, displays processing times and provides customizable drying options with unique settings for each scope. This system also includes a customizable hang time monitor with an intelligent automated scheduler and can provide downloadable export files for endoscope management, user lists and other data.

The ultimate in Endoscope drying systems is now available! SureDry Scope Cabinets feature an external HEPA filtered positive pressure drying system. Dri-Scope Aid® is the industry leading internal lumen drying system. This combination provides facilities with the assurance that they will be able to meet all current and anticipated future guidelines for external and internal drying of endoscopes, providing their patients the best possible assurance of infection prevention.

The Sure-Dry Scope Cabinet includes the industry best Positive Pressure HEPA Filtered Drying system. Inside air is replaced inside the cabinet 4 times per minute. Meets or exceeds Joint Commission, AORN, SGNA, and AAMI guidelines.
